Humbucker Pickup Rings Flat Bottom
Model No.:
PR-001, 3x5 mm high
PR-002, 5x7 mm high
PR-003, 7x9 mm high
PR-004, 11x12 mm high
PR-005, 3x3 mm high
PR-006, 5x5 mm high
Black, White and Cream colors
ABS plastic
Humbucker Pickup Ring
Flat Bottom Type
Heights at Lengths: 3x5 mm (PR-001), 5x7 mm (PR-002), 7x9 mm (PR-003),
11x12 mm (PR-004), 3x3 mm (PR-005), 5x5mm (PR-006)
Pickup Mounting Hole Spacing: 78mm
Inner Dimension: 70x39.3 mm (PR-001, -002, -004, -005, -006)
70x39.6 mm (PR-003)
Outer Dimension: 91.8x46 mm (PR-001--004)
88.6x45 mm (PR-005, -006)
Color: Black, White, Cream (Ivory)
for Electric Guitar Humbucking Pickups

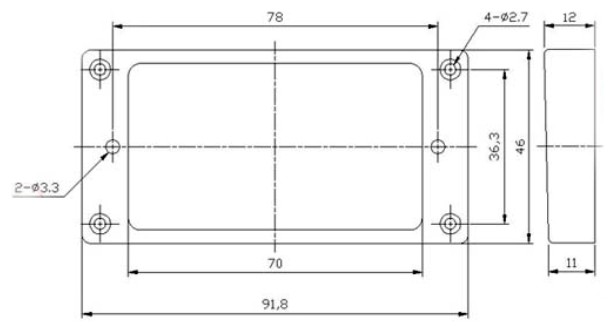

Detailed Dimensions of the Humbucker Pickup Rings
PR-001:
PR-002:
PR-003:
PR-004:
PR-005:
PR-006:
