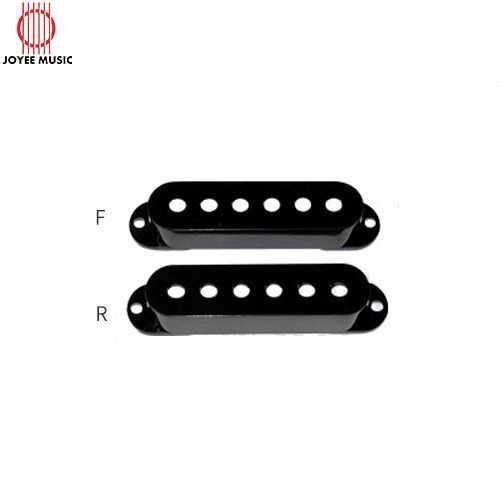

Single Coil Pickup Covers 69.7mm & 69.5mm Long Bobbin Cover
Model No.:
PC-003 F,
50mm pole piece spacing, 83.2x18x14.7 mm overall size
PC-003 R,
52mm pole piece spacing, 83x18x14.7 mm overall size
ABS material
Black, White, Mint Green and Ivory (Cream) colors
Single Coil Pickup Cover
Pole Piece Spacing: 50mm and 52mm
Bobbin Cover Length: 69.7mm and 69.5mm
Mounting Hole Spacing: 76.5mm
Overall Size: 83.2mm L x 18mm W x 14.7mm H (F)
83mm L x 18mm W x 14.7mm H (R)
Color: Black, White, Mint Green, Ivory (Cream)
for Stratocaster Guitar

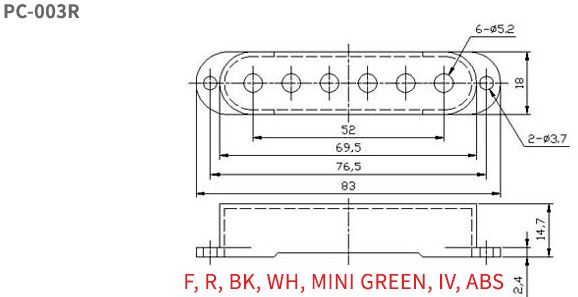

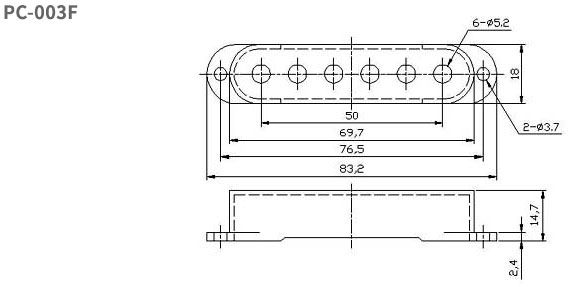

Detailed Dimensions of the Single Coil Pickup Cover
