Single Coil Pickup Covers Jumbo Type
Model No.:
PC-030 F, 50mm pole piece spacing
PC-030 R, 52mm pole piece spacing
70.4mm L x 20.7mm H bobbin cover size
76.5mm mounting hole spacing
ABS plastic
Single Coil Pickup Cover
Jumbo Type
Pole Piece Spacing: 50mm and 52mm
Bobbin Cover Size: 70.4mm L x 20.7mm H
Mounting Hole Spacing: 76.5mm
Overall Size: 84mm L x 20.7mm H
for Electric Guitar Pickups

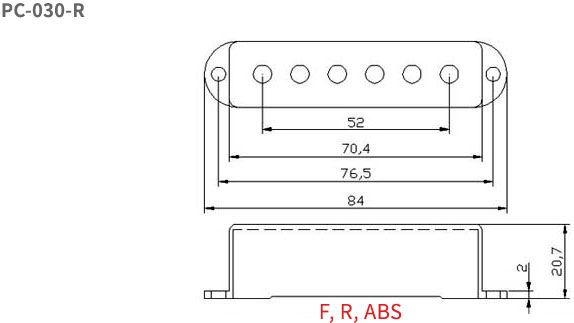

Detailed Dimension of the Single Coil Pickup Cover
