Locking Guitar Machine Heads
Model No.: JMH-N05 SP LOCK
Rear thumbscrew locking type
6-in-line, 6-in-line lefty, 3 aside, 6L+6R types
1:19 gear ratio
Chrome, Black and Gold finishes
Product Description
Type: 6-in-line, 6-in-line lefty, 3 aside, 6L+6R
Finish: Chrome, Black, Gold
Gear Ratio: 1:19
Threaded hex bushings, washers and mounting screws included
Introduction of the SP Locking of the Locking Guitar Tuners
SP Locking uses special housing and 1:19 ratio gear for production differentiation. Also conform ratio trend, add some parts for the least shaking. For better quality, 3 different heights of shafts are used.
Especially, SP Locking is with thumbwheel and screw pin in a body. And this kind of locking solves the hanging pin problem from other factories' products.
SP Locking has 2 different types of thumbwheels as below: the 1st model has a ripple surface on the thumbwheel; the 2nd model is with a smooth surface on the thumbwheel for engraving custom logo.
This Locking is upgraded than basic Locking.
When you replace the tuners on a guitar, don't have to disassemble and assemble the tuners because thumbwheel size fit for bushing size. Also when you use 3+3 (Left&Right), we provide products with opposite side screws for upgraded locking.

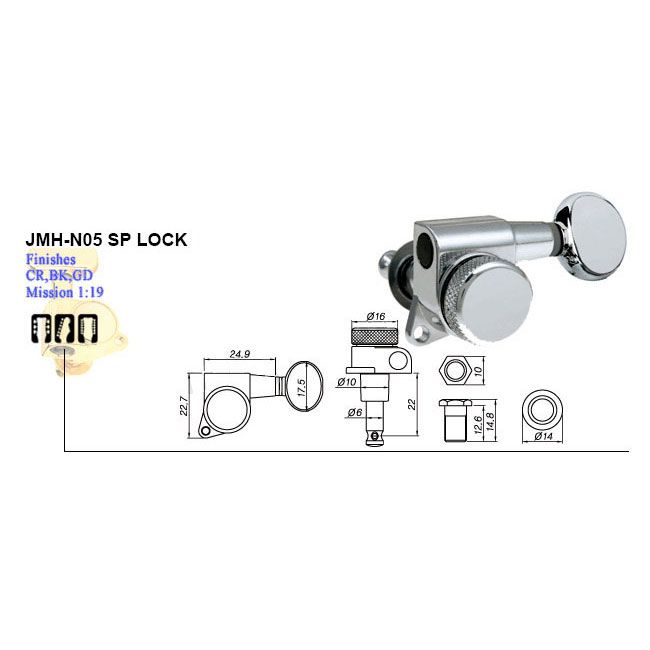

SP Locking Diagram of the Locking Guitar Tuners:
